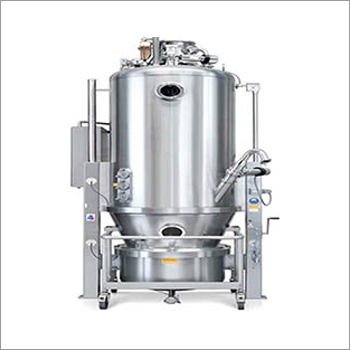

Fluid Bed Dryer

Fluid Bed Dryer
Fluid Bed Dryer
Product Code : AE-10
Brand Name : ADVANCE ENGINEERING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • - INR
Product Description

Our compact outlined Fluid Bed Dryer are perfect for air fluidization for drying granules, crystalline, coarse or comparable materials in pharmaceuticals, fine chemicals, colors, nourishment and unified commercial enterprises. Our liquid bed driers depend on the basic idea which starts with a basic Drying unit to which a few distinctive discretionary bundles might be added for transformation to a granulation or coater. Our liquid bed dryers take little time to dry items in an equally way furthermore requires less work. Our conservative unit is perfect for drying granular, crystalline, coarse and comparative material in pharmaceuticals, Dryer, Fine Chemicals, and Food and Allied Industries.

Fluid Bed Dryers are intended to dry products as they drift on a cushion of air or gas. The procedure air is offered to the bed employing a special perforated supplier plate and flows via the bed of solids at a speed adequate to provision the weight of atoms in a fluidized condition. Bubbles make and breakdown within the fluidized bed of substance, indorsing intense particle drive. In this state, the solids act as a free-flowing boiling runny. Actual high heat and mass transmission values are gotten as a result of the close contact with the solids and the difference velocities amid separate atoms and the fluidized gas. Often goods are needed in agglomerate or granular formula to attain good prompt properties and so watery bed dryers may be joint with agglomeration, spray drying, or granulation systems.
This sort of dryer can be utilized in a batch of incessant procedure. The good flows along a perforated bed in the dryer. Then stifling air is gusted up via the perforated bed making the product to flow in the air stream. Incessant beds vibrate for moving the product over the dryer. Batch sort have agitator to sustain the product moving via the air stream. Originate typically in pharmaceutical and food (dairy) plants.

Unique Features.

  • Improved heat and mass transmission through close contact and socializing with the fluidizing gas.
  • Heat sensitive substances can be dried out at temperatures below the boiling point because of abridged vapor pressure.
  • Indirect heat transfer exteriors can be additional to upsurge volume or reduce bed area.
  • Closed cycle Fluid Bed schemes, in which sluggish gases can be castoff, are obtainable to grip toxic products, or flammable flush wetted materials.
Application
  • Inorganic and Organic Chemicals.
  • Polymers and Resins.
  • Agglomerated Products.
  • Fertilizers.
  • Chemicals.
  • Foodstuffs in powder or agglomerated form.
Working Principle
The procedure air is complete to the bed via a superior perforated distributor plate and movements via the bed of solids at a rapidity enough to provision the weight of atoms in a fluidized state
Bubbles originates and breakdown within the fluidized bed of substance, indorsing penetrating particle movement. In this condition, the solids act as a free-flowing boiling liquid.
Very tall heat and mass transmission takes place since the close contact with the objects and the fluidizing gas.

System Superior Features
  • Designed for the continuous moisture vanishing rate
  • Optimal air flow and cove & outlet temperatures
  • Finest energy consumption
  • Some quantity of moisture is purposely stored in the sand at dryer passage for evaporative refrigeration of sand in cooler
  • Most real and well-organized fluidization mechanism
  • Nearly zero sand carry-over consequently no wear & tear.
  • Cyclone cum Bag house for the best pressure drop and space
Applications
  • Chemical Industry
  • Mineral processing
  • Food Industry
  • Polymer industry

Technical Specifications:

Non  Contact Parts 304/ Mild Steel cladded with SS 304.   SA 240 Grit Matt Finish.
Gaskets Food Grade Silicon Rubber Gasket / White Neoprene Rubber Gasket.
Main Motor 1.0 H.P./ 2.0 H.P./2880 RPM/3–Phase/415Volt. 2.0 H.P./ 7.5 H.P./2880 RPM/3–Phase/415Volt. 10.0 H.P. / 20.0 H.P. /2880 RPM/3–Phase/ 415 Volt.
Tube for Seal As per Model & Bowl Size. Use Inflatable Tube Silicon Gasket with PU connection. / White Neoprene Rubber Gasket Food Graded.
View Glass 100 MM DIA Toughen Glass. 200 MM DIA Toughen Glass
Heater Arrangement Steam Heater / Electric Heating in Both Operations.
Finger Bag 3 Micron size of Finger Bag as per FBD Models. (Imported Cotton)
Finger Bag Shaking In All Models Finger Bag Up / Down through Pneumatic Cylinder. Shaking in Auto / Timer Based.
Control - Operation Manually Operated Control panel through Push Button, Timer, Indicators & Selector Switch. Emergency / Discharge / Limit Switch / Pneumatic.
Optional Operation Programmable Logic Controller / 1200: Allen Bradley. HMI/MMI Make: KEP.  Speed variable. Interlock, Alarms, Recipe Edit /Save. Security etc.
Pneumatic Parts All Pneumatic Cylinder & Solenoid Valve make: Jenatics / Aira / Festo Make.
Compressed Air Minimum 4.5 Kg/cm2    Maximum 8.0 Kg/cm2 Continues Air Pressure required. (Client Scope)







Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Others
  • Supply Ability
  • 4-5 Per Month
  • Delivery Time
  • 4-5 Week
  • Packaging Details
  • Wooden Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • TIN NO-24072305587 IEC CODE-0815902662
