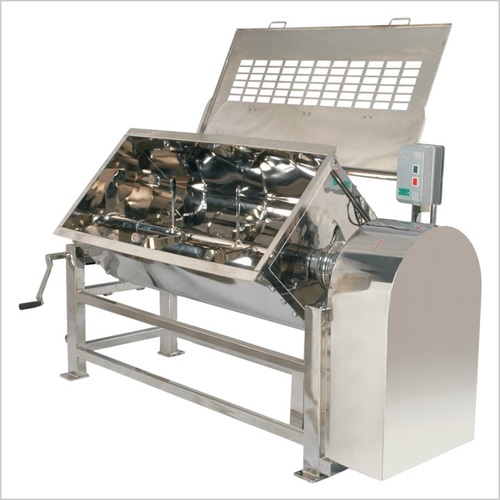

Mass Mixer

Mass Mixer
Mass Mixer
Product Code : AE-09
Brand Name : ADVANCE ENGINEERING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • - INR
Product Description

The Mass Mixer Machine is essentially mingling an assembly wherein the mingling stirrer is in horizontal location in the ampule & have a lonely speed and simple rotation. The stirrer switches around itself at a very measured speed privileged the bowl and thus attaining close mingling of dry or wet constituents of Tablet Granulation, Chemicals, Powder, Food and Confectioneries Materials.
Because of a distinctive design eye of mechanism and stirrer, the mass mixer can be varied the sticky & also uniformly and intimately mix the materials which are to be difficult to mix.

Special Features

  • Variety of models to outfit working volume 50,100 & 200 Kgs. At unpackaged density of 0.50 gms/cc.
  • All contact parts are made from S.S.304 quality solid. (SS316 offered on request on extra cost)
  • Dense design desires abstemiously smaller floor space.
  • Single stirrer with solitary speed for dry & damp mixing.
  • As stirrer's sealings meets product, there can be any black particle pollution problem, after sealing bush got wear & tear.
  • All non-contact parts (over-all structure) factory-made from mild steel and cladded with SS304 or chrome gilded or manufactured of SS304 in GMP Model. Interaction parts are refined to the mirror ended and non-contact shares are refined to the matt over in GMP Model. All guards & covers made from SS304 material in GMP model & made from mild steel & tinted in normal model.
  • General construction & all non-contact portions are manufactured using Mild Steel and same will be painted in Normal Model.
  • All moving parts are surrounded with care guards.
  • Thrust manners are offered to transmit out unbending thrust load.
  • Convenient for cleaning & operating.
  • Simply intended SS304 dust cover offered with one port for substance charging & inspection.
  • Interlocking system with top dust shelter, to circumvent accident, during procedure.
  • The ampule tilting system offered for convenient unloading of goods and easy cleaning.
  • Particularly design all moving shares offered with provision of convenient lubrication.

Optional

  • SS316 good contact shares instead of SS304.
  • Adjustable speed drive or double rapidity of stirrer offered on extra cost, if obligatory.
  • Flameproof model.

Application
Idyllic for mixing of chemicals, food, pharmaceutical powders, and confectioneries etc. etc.

Technical Specifications :

MODEL

AE-MM 50 Kgs.

AE-MM – 100 Kg.

AE-MM – 150 Kg.

AE-MM 200 Kgs.

AE-MM 300 Kgs.

Capacity

50 Kg.

100 Kg.

150 Kg.

200 Kg.

300 Kg.

Over flow capacity

110 Liters.

220 Liters.

300 Liters.

440 Liters.

640 Liters.

Working capacity

88 Liters.

156 Liters.

234 Liters.

309 Liters.

500 Liters.

All Contact Parts

S.S.- 316 (M.O.C.)

Mirror Finish

S.S.- 316 (M.O.C.)

Mirror Finish

S.S.- 316 (M.O.C.)

Mirror Finish

S.S.- 316 (M.O.C.)

Mirror Finish

S.S.- 316 (M.O.C.)

Mirror Finish

All Non Contact Part

S.S. – 304. Matt Finish.

S.S. – 304. Matt Finish.

S.S. – 304. Matt Finish.

S.S. – 304. Matt Finish.

S.S. – 304. Matt Finish.

Speed of stirrer

30 RPM

30 RPM

30 RPM

25 RPM

25 RPM

Variable Speed (Optional)

Through AC- VFD. & POT Meter.

Through AC- VFD. & POT Meter.

Through AC- VFD. and POT Meter.

Through AC- VFD. & POT Meter.

Through AC- VFD. and POT Meter.

Electric Motor

3 HP / 3 Ph. / 415 V

5 HP / 3 Ph. / 415 V

7.5 HP / 3 Ph. / 415 V

7.5 HP / 3 Ph. / 415 V

10.0 HP / 3 Ph. / 415 V

Interlock

Emergency Stop & Limit Switch.

Emergency Stop and Limit Switch.

Emergency Stop and Limit Switch.

Emergency Stop and Limit Switch.

Emergency Stop and Limit Switch.
