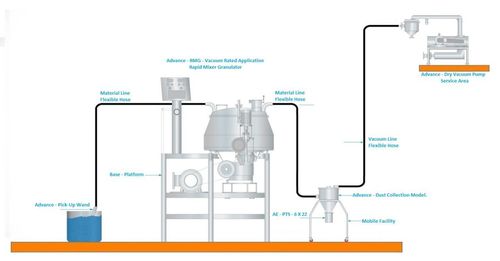

Rapid Mixer Granulator (RMG)

Rapid Mixer Granulator (RMG)
Rapid Mixer Granulator (RMG)
Product Code : 12
Brand Name : ADVANCE ENGINEERING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Rapid mixer granulator is extensively utilized equipment in pharmaceutical engineering. It is taken into use to blend the pharmaceutical components and style the granules prior to compression.
Impellers and chopper are mostly accountable wet granulation in the fast mixer
granulator.

Impellers: Impellers are fitted at the lowest of the dome formed stainless steel bowl. It possesses two complete length and two half-length blades. These are designed in a way so that small blades boost the substances and full-length blades thrust the substance to blend well. These impellers break up the damp mass into minor pieces and granules.

Choppers: These are particularly intended small blades situated at the bottom of the dome. It alternates at great speed (1440/2880) RPM to provide convenient and unchanging granulation. They cut the damp lumps of substance into minor sized portions those are varied similarly by the impellers and its haste is accountable for the extent of the granules. It doesn't have any important result on the granule dimension when impeller haste is high (above 200 RPM).

Discharge Port: A discharge port is situated flat at lowest of the dome. Granules are unpacked in the ampule via the discharge port. Initial of discharge port is functioned by a beaten air regulated cylinder recognized as pneumatic cylinder which necessitates 3-5 kg/cm pressure of bandages air.

Principle of Working:
In rapid mixer granulator, creation of granules happens by whirling, rising, and tumbling gesture of material. Dry mingling is done by addition all constituents into the RMG by revolution of impeller and chopper at tall speed. During the addition of binder answers to the powder impeller and chopper are worked at low speed. After the creation of damp mass impeller and chopper are functioned at high speed to make the granules of obligatory size.

Dry mingling takes approximately 3-5 minutes to blend the fixings, wet mixing takes 5-10 minutes to produce the damp mass of substance while the granulation procedure takes 5-10 minutes to produce 0.5 mm to 1.5 mm sized granules. Mingling time consumed in dispensation is be contingent upon the constituent amount and their particle size.

Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Others
  • Supply Ability
  • 4-5 Per Month
  • Delivery Time
  • 4-5 Week
  • Packaging Details
  • Wooden Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
