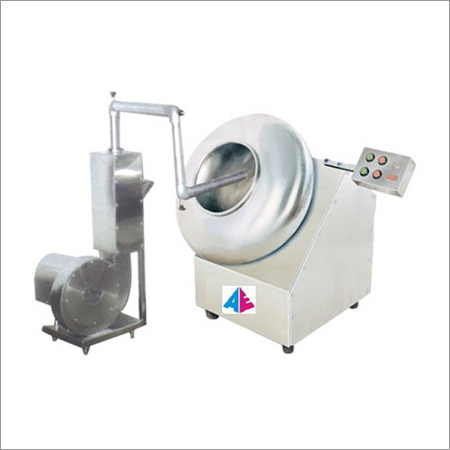

Tablet Coating Pan

Tablet Coating Pan
Tablet Coating Pan
Product Code : AE-01
Brand Name : ADVANCE ENGINEERING
Trade Information
  • Unit of Measure
  • Inch/Inches
  • Price Range
  • - INR
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA)
  • Supply Ability
  • 10 Per Week
  • Delivery Time
  • Week
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • TIN NO-24072305587 IEC CODE-0815902662
Product Description
Tablet Coating System perfect for film and sugar covering. The machine is accessible with 42" size of stainless steel covering container. The machine is planned with manufactured structure fitted with SS walled in area and drive unit of engine and lessening gear box. Machine has variable velocity drive to accomplish 8 to 15 RPM by variable rate pulley. The machine is mounted on dynamounts which evades establishment and vibration.
A hot air blower framework is given independently on trolley to simple cleaning and setting. The framework has indoor regulator controller to choose temperatures between 40º C to 100º C by electric Heater. The complete frameworks fitted suitable engine, blower, funneling and spout for hot wind stream.
Features
  • Design with cGMP requirements
  • Easy to replace polishing pan
  • Fixed or detachable baffle
  • Easy to operate
  •

    TECHNICAL SPECIFICATIONS



    Model Code

    AE-CP-42

    AE-CP-48

    Size

    42”

    48”

    Loading Capacity in liters

    100 Liters. (Mini: -10Kg. To Maxi: - 70Kg.)

    150 Liters. (Mini: -20Kg. To Maxi: - 110Kg.)

    Machine’s Contact Part

    Stainless Steel – 304.    (220 Gritt Mirror Finish)

    Optional Contact Part

    Stainless Steel – 316.    (220 Gritt Mirror Finish)

    Machine’s Non- Contact Part

    Mild Steel (M.S.) With Powder Coated.

    Optional Non Contact Part

    Stainless Steel – 304. (240 Gritt Matt Finish)

    Motor H.P.

    3.0 H.P. / 1440 RPM / 415 V / 3 – Phase.

    Blower H.P.

    1.0 / 1440 RPM / 415 V / 3 – Phase.

    Blower Arrangement

    Provide with machine at extra cost. (Ducting should be client scope)

    Heater Capacity in Kw.

    3.0 K.W. (Electric)

    Pan (Bowl)

    2.0 MM Thickness with 5 No. of Baffles.

    RPM Of Pan

    10 To 25 (Direct couple with Gear Box & Motor)

    Optional (Speed Variable)

    3.0 H.P. / 1440 RPM / 3 – Phase / 415 V. / 50 Hz.

    Pan Mounting Angle

    30°

    Optional (Spraying System)

    Spray Gun – S.S. 304 (Manually)





    Model Code

    AE-CP-60

    AE-CP-72

    Size

    60”

    72”

    Loading Capacity in liters

    220 Liters. (Mini: -50Kg. To Maxi: - 200Kg.)

    300 Liters. (Mini: -70Kg. To Maxi: - 250Kg.)

    Machine’s Contact Part

    Stainless Steel – 304.    (220 Gritt Mirror Finish)

    Optional Contact Part

    Stainless Steel – 316.    (220 Gritt Mirror Finish)

    Machine’s Non- Contact Part

    Mild Steel (M.S.) With Powder Coated.

    Optional Non Contact Part

    Stainless Steel – 304. (240 Gritt Matt Finish)

    Motor H.P.

    5.0 / 7.5 H.P. / 1440 RPM / 415 V / 3 – Phase.

    Blower H.P.

    3.0 / 1440 RPM / 415 V / 3 – Phase.

    Blower Arrangement

    Provide with machine at extra cost. (Ducting should be client scope)

    Heater Capacity in Kw.

    5.0 K.W. (Electric)

    Pan (Bowl)

    2.0 MM Thickness with 5 No. of Baffles.

    RPM Of Pan

    10 To 25 (Direct couple with Gear Box & Motor)

    Optional (Speed Variable)

    5.0 / 7.5  H.P. / 1440 RPM / 3 – Phase / 415 V. / 50 Hz.

    Pan Mounting Angle

    30°

    Optional (Spraying System)

    Spray Gun – S.S. 304 (Manually)
