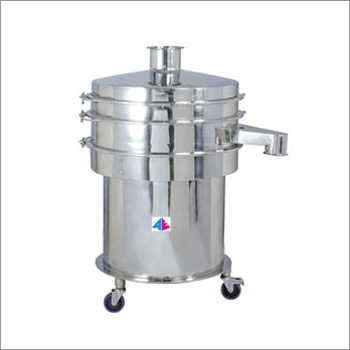

Vibro Sifter

Vibro Sifter
Vibro Sifter
Product Code : AE-06
Brand Name : ADVANCE ENGINEERING
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • - INR
Product Description

We offer top-class vibro sifters that are roundabout gyratory screens, indispensable to independent solids from solids and fluids from strong. Our extent is accessible in various measurements of 20", 30", 36" and 48". We can likewise redo our vibro sifters according to the customer's particular prerequisites. The machine is made with stainless steel GMP with S.S 304 or 316 contact parts. The machine has double deck arrangement with installed vibro motor. The machine has a lid cover to protect it from dust.

Vibro separators are rounded unitary gyratory screens taken into use to separate mass arrangement of liquid from solid, solids from solids, and for nuance of substances according to particle size, possessing a very varied series application.
This is done by vibrating the screens in three dissimilar planes laterally the vertical axis using a particularly designed vibratory motor with off centered masses at the bottom and top end of the motor shaft.
The high weight grounds vibration in the flat plane that makes the substances to move across the screen in the direction of the edge. The lower weight works to slant the machine that makes vibration in the perpendicular tangential axis.
The angle of lead of the minor weight with relative to the upper weight offers mutable control of the screening design. Therefore, the substance travels across the screens and in the perpendicular and peripheral planes allowing extreme screening. Vibro sifter are obtainable with an extensive variety of likely screen sizes (mesh) choice for multiple deck parting is also likely.
The sifter unit contain of particularly designed vibratory motor to track on 400/440V, appropriate HP, 3 phases, 50 cycles electric source with adaptable eccentric masses at the bottom and top of the motor shafts straddling precipitously at the middle of the base plate of screening unit. It consists of SS 304 screen sandwiched amid SS 304 hopper and bowl with the assistance of singular clamp with gasket. This in shot is fastened to the base plate. Rugged Springs positioned over the circular motor base intensify the vibration and at the similar time bound the vibration from being transported to the floor.

Salient Features:

  • Soundless, Upkeep free and high speeds.
  • Obtainable in numerous models offering screening diameter of 12”, 20”, 30”, 36”, 48”, 72” etc
  • Moveable and compact.
  • Electric power requirement less than other machine of the sort in the industries and lower energy.
  • Consumption compared to responding vibratory system.
  • Standard machines are with TEFC motor explosion proof / flame proof motor material.
  • All interaction parts and screen made of SS 304 AISI stainless steel material.
  • SS 316 excellence contact parts elective.
  • Special obligation such as brushing arrangements, SS lid along with charging port and spring-loaded openings.
  • Easy pull to pieces and cleaning ability for contact parts.
  • Varied choice of screen sizes 4-300 Mesh.
  • Double and Triple deck screens with opening and hopper for lowest deck obtainable on request.
  • • Faster separation
  • • Process adaptability
  • • Long screen life
  • • Less maintenance

Technical Specifications :

MODEL

AE-VSM 20”

AE-VSM 30”

AE-VSM 36”

AE-VSM 48”

AE-VSM 60”

AE-VSM 72”

Screens

SS 304 (SS 316 / 316 L Optional)
Also Available in Contact Part – SS -304. Or Non Contact Part Mild Steel (M.S.) Powder Coated.

Screen Dia.

500 mm.

750 mm.

914 mm.

1220 mm.

1520 mm.

1820 mm.

Capacity/Hour *

20 to 200 Kg.

30 to 300 Kg.

30 to 325 Kg.

40 to 410 Kg.

60 to 700 Kg.

100 to 1000 Kg.

Charging height

800 5 mm without Lid
1000 5 mm with Lid
900 5 mm without Lid
1220 5 mm with Lid
900 5 mm without Lid
1220 5 mm with Lid
1000 5 mm without Lid
1350 5 mm with Lid
1100 5 mm without Lid
1420 5 mm with Lid
1100 5 mm without Lid
1420 5 mm with Lid

Discharging height

720 5 mm.

735 5 mm.

735 5 mm.

780 5 mm.

935 5 mm.

965 5 mm.

Electric Motor

0.25 HP / 1440 RPM / 3 Ph.

0.5 HP / 1440 RPM / 3 Ph.

0.5 HP / 1440 RPM / 3 Ph.

1.5 HP /1440 RPM 3 Ph.

3.0 HP / 1440 RPM / 3 Ph.

5.0 HP /1440 RPM 3 Ph

Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Others
  • Supply Ability
  • 4-5 Per Month
  • Delivery Time
  • 4-5 Week
  • Packaging Details
  • Wooden Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • TIN NO-24072305587 IEC CODE-0815902662
